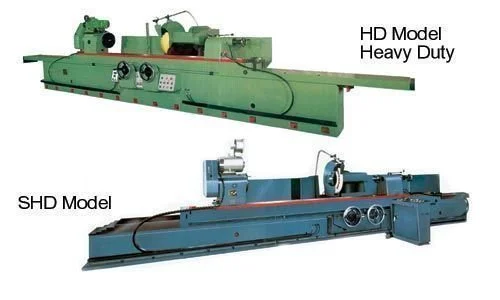

New WILLIS SHD-120 | Universal Cylindrical Grinders

Description

HEAVY DUTY CYLINDRICAL GRINDER FEATURES:
- Ideal for straight faced rolls, large machinery columns, automobile axles, printing rolls, large motor armatures, etc
- Heavily ribbed, rigid bed with great stiffness and sufficient length to support the table over full travels
- Automatic wheelhead control with rapid approach and retract
- Forced lubrication for wheelhead spindle with electrical interlock with wheelhead motor for safety
- Variable speed workhead spindle
- Swiveling table equipped with dial indicator for maximum precision
- "Air Bearing" for workhead and tailstock for easy adjustment
- Telescoping covers for bedway protection

SHD Model Features:
31 inch maximum diameter workpiece
CD of 120 inch, 140 inch and 160 inch
Up to 4,400 lbs between centers
32 inch wheel
20HP wheel motor
