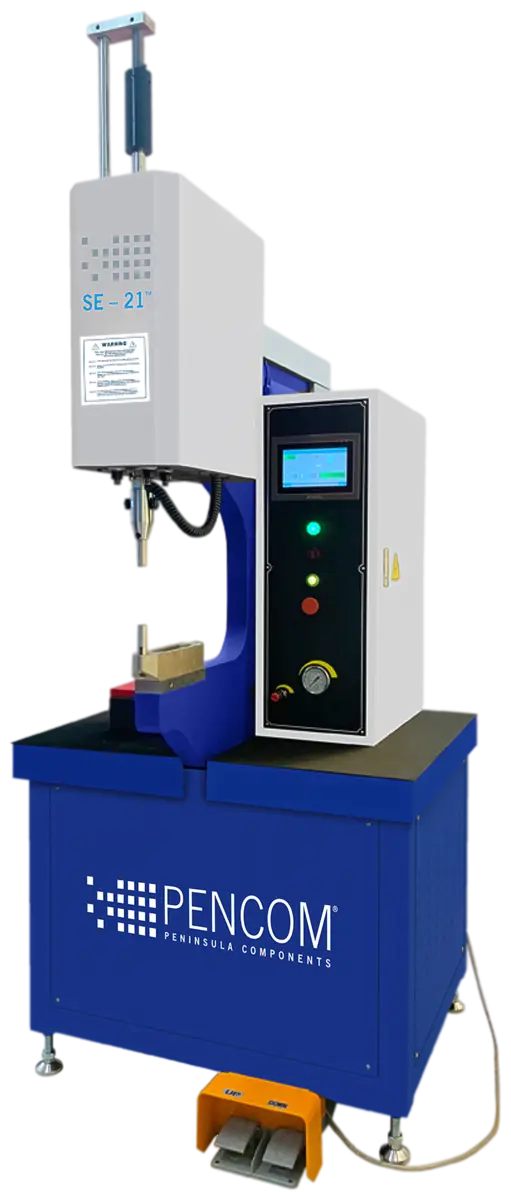

New PENCOM SE-21 | Fastener Insertion Machines

Description

The SE-21™ is the foundational model in the SE series, providing a straightforward solution for fastener insertion needs. Like all models in this range, this machine operates with 6 tons of pressure, has 18 inches (457mm) of throat depth, accommodates fasteners from 2-56 (M2) to 3/8-16 (M10), and is equipped with an operator safety system. Its simplicity and efficiency make it ideal for operations seeking a basic, reliable fastener insertion machine.

Standard Features:
• Auto Stop: This feature reduces risk and harm to operators. As the press is in motion, it will stop when encountering a foreign object.
• Positive Stop: This type of adjustable control energizes a solenoid valve to extend or retract the cylinder at the appropriate time. When the extend valve is energized, the cylinder begins to extend and it moves until it hits a stop at the end of its travel. When the solenoid for retraction is energized, the shaft will begin to retract until it hits the stop at the end of its travel. This is an advantage in softer materials such as PCB, plastic, and aluminum.
• Batch Counter: The batch counter will automatically count the number of installed fasteners in a single application, and features a buzzer to indicate when the total installations are complete.
