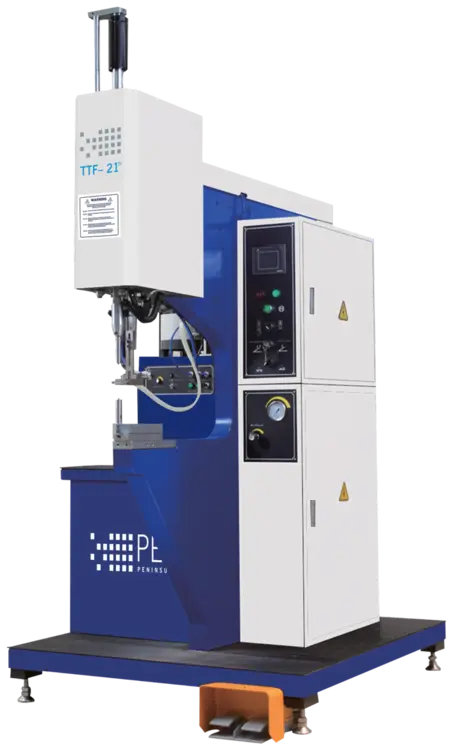

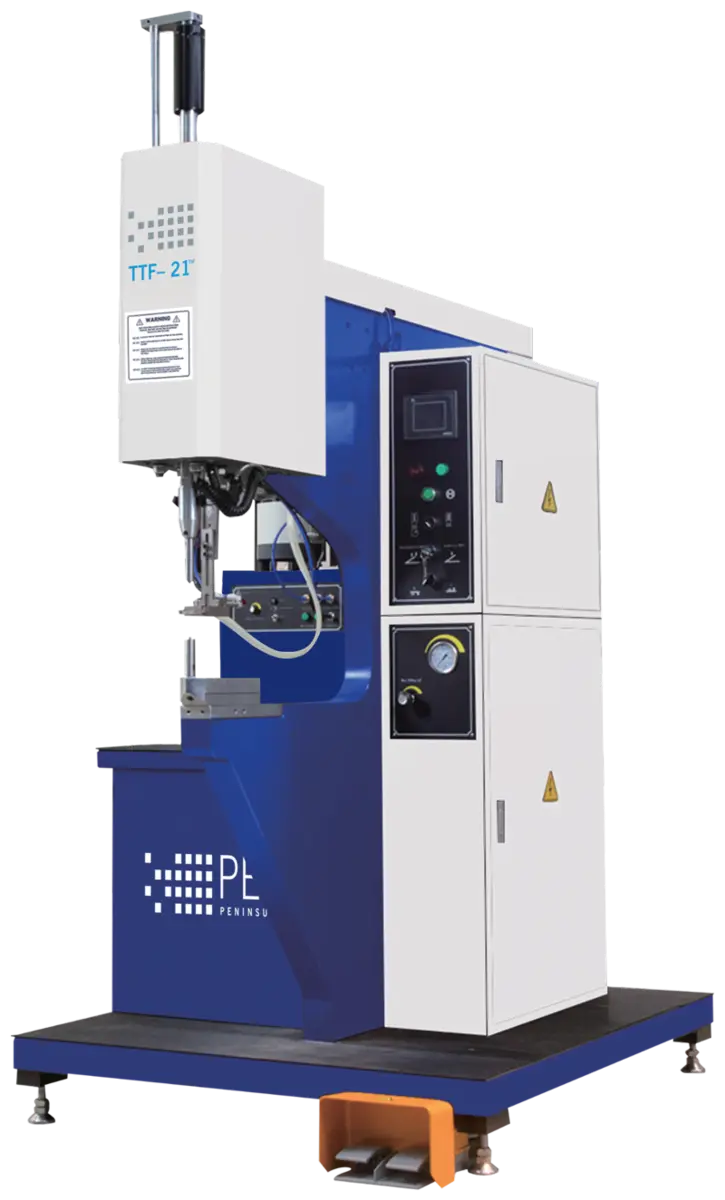

New PENCOM TTF-21 | Fastener Insertion Machines

Description

PENCOM's TTF series operates with 10 tons of pressure and features a 25 inch (635mm) throat depth. The TTF-22™ offers precision fastener insertion with its Positive Stop System and Batch Counter/Stroke Adjustment, catering to sizes from 2-56 (M2) to 1/2-13 (M12). Its energy-efficient dual pump system and comprehensive Control Panel optimize operations, while a dedicated safety system ensures secure usage. Additional options further expand its adaptability.

Standard Features:
• Auto Stop: This feature reduces risk and harm to operators. As the press is in motion, it will stop when encountering a foreign object.
• Positive Stop: This type of adjustable control energizes a solenoid valve to extend or retract the cylinder at the appropriate time. When the extend valve is energized, the cylinder begins to extend and it moves until it hits a stop at the end of its travel. When the solenoid for retraction is energized, the shaft will begin to retract until it hits the stop at the end of its travel. This is an advantage in softer materials such as PCB, plastic, and aluminum.
• Batch Counter: The batch counter will automatically count the number of installed fasteners in a single application, and features a buzzer to indicate when the total installations are complete.
• Laser Locating: This system allows the operator to see where each fastener will be installed with precision.
